Product details
Material: W1
Purity: ≥99.95%
Type: stamping boat, welded boat, riveted boat
Size: Conventional boat, Customized boat
Surface: Alkali washing, Electrolytic polishing
Product characteristics: Tungsten boat has good conductivity, heat conduction, high temperature resistance, wear resistance and corrosion resistance.

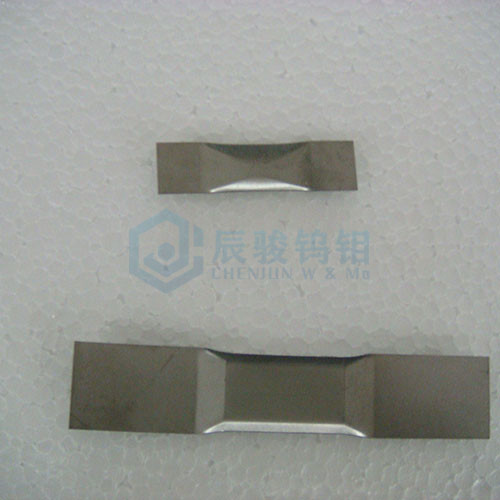

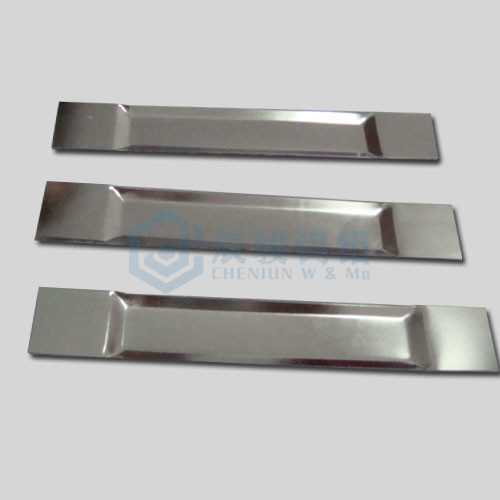

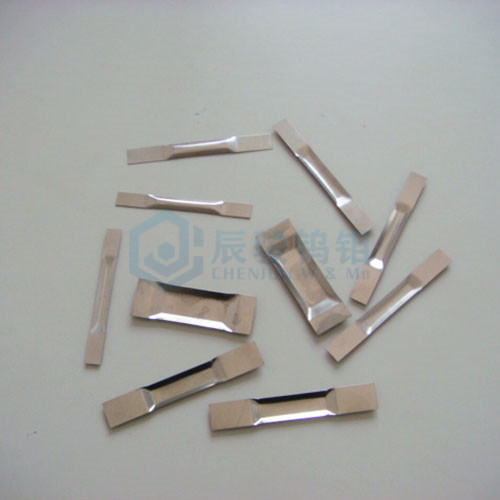

Process: Stamping boat can also be called evaporation tungsten boat or coated tungsten boat, is formed by high temperature stamping.
Welded or riveted boat can be processed according to drawing.
Specification of stamping boat:
Type | Thickness(mm) | Width ( mm) | Length (mm) | Thickness range (mm) |
310 | 0.3 | 10 | 100/90/80 | 0.2～0.5 |
312 | 0.3 | 12 | 100 | |
315 | 0.3 | 15 | 100 | |
320 | 0.3 | 20 | 100 | |
313 | 0.3 | 13 | 50 |
Applications:
-- Used in vacuum coating industry
-- Used as carrying boat and carrying box in vacuum furnace
