Product details

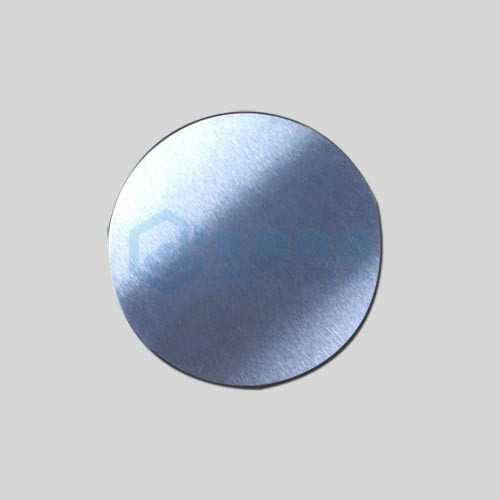

The silver-tungsten alloy, also known as the tungsten-silver alloy, is composed of highly conductive silver and refractory tungsten.Only false alloy can be formed between tungsten and silver. Therefore, W-AG alloy presents the comprehensive excellent properties such as high temperature resistance, high hardness, low coefficient of expansion of tungsten and high thermal conductivity and good plasticity of silver.
As parts and components, Tungsten and silver alloy is widely used in aerospace, aviation, electronics, electric power, metallurgy, machinery, sports equipment and other industries.
Standard:ASTM B631
Technical parameters
symbol | Ag | Impurities | W | Deansity g/cm3 | Conductance IACS% | Hardness HB≥ | Bending strength |
AgW30 | 70±1.5 | 0.5 | Balance | 11. 75 | 75 | 75 | |
AgW40 | 60±1.5 | 0.5 | Balance | 12.4 | 66 | 85 | |
AgW50 | 50±2.0 | 0.5 | Balance | 13.15 | 57 | 105 | |
AgW55 | 45±2.0 | 0.5 | Balance | 13.55 | 54 | 115 | |
AgW60 | 40±2.0 | 0.5 | Balance | 14 | 51 | 125 | |
AgW65 | 35±2.0 | 0.5 | Balance | 14.5 | 48 | 135 | |
AgW70 | 30±2.0 | 0.5 | Balance | 14.9 | 45 | 150 | 657 |
AgW75 | 25±2.0 | 0.5 | Balance | 15.4 | 41 | 165 | 686 |
AgW80 | 20±2.0 | 0.5 | Balance | 16.1 | 37 | 180 | 726 |
