Product details
Material：Mo,MoLa,TZM
Composition: Mo1:≥99.95%
MoLa:Mo + La2O3(0.5%～1%)
TZM: Mo + 0.40～0.55%Ti + 0.06～0.12%Zr + 0.01～0.043% C

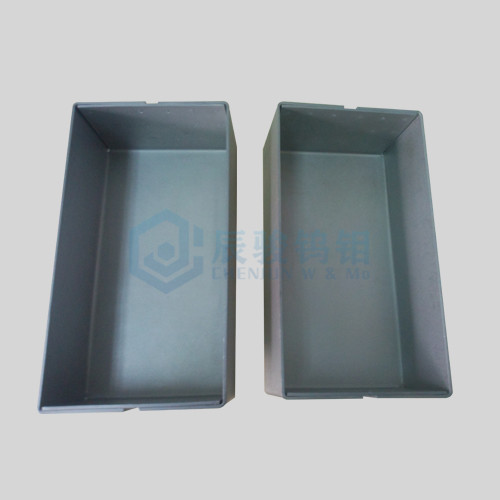

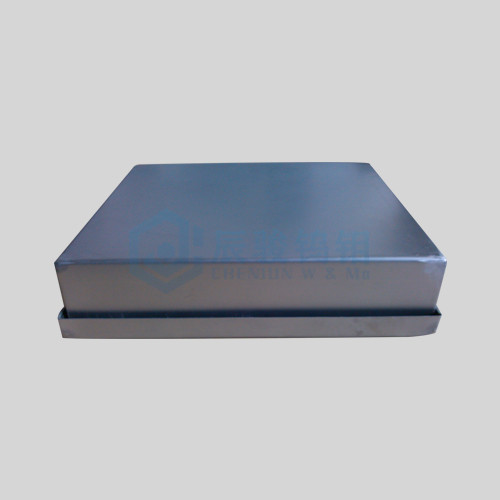

Type: stamping boat, folded boat, weled boat, riveted boat
Size: Conventional boat, Customized boat
Surface: Cold rolling, alkali washing
Process: Stamping boat can also be called evaporation boat or coated boat, is formed by molybdenum sheet stamping.
Folded boat is generally made of 0.15 ~ 0.2mm molybdenum sheet.
Riveted boat generally with 2-3mm plate, by heating folding, and then riveting forming.
Welded boat generally adopts 2-3mm plate, which is formed by heating and bending and then welded.
Welded,folded and riveted boat can be processed according to drawing.
Specification of stamping boat:
Type | Thickness(mm) | Width ( mm) | Length (mm) | Thickness range (mm) | Surface |
310 | 0.3 | 10 | 100/90/80 | 0.2～0.5 | Bright |
312 | 0.3 | 12 | 100 | ||
315 | 0.3 | 15 | 100 | ||
320 | 0.3 | 20 | 100 | ||
313 | 0.3 | 13 | 50 |
Custom sizes available upon request. Your special requests are available.
Applications:
-- Used in vacuum coating industry
-- Used as carrying boat and carrying box in vacuum furnace
