Products details
Material：Mo1,MoLa,TZM
Composition：Mo1:≥99.95%
MoLa:Mo + La2O3(0.5%～1%)
TZM: Mo + 0.40～0.55%Ti + 0.06～0.12%Zr + 0.01～0.043% C
Standard：GB/T 4188-2017, ASTM B 387
Properties: High purity, high density, fine grain, easy to be processed
Specifications and surface:
Name | Size | Surface |

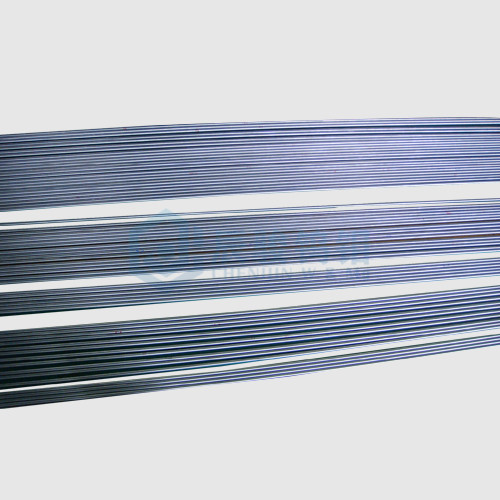

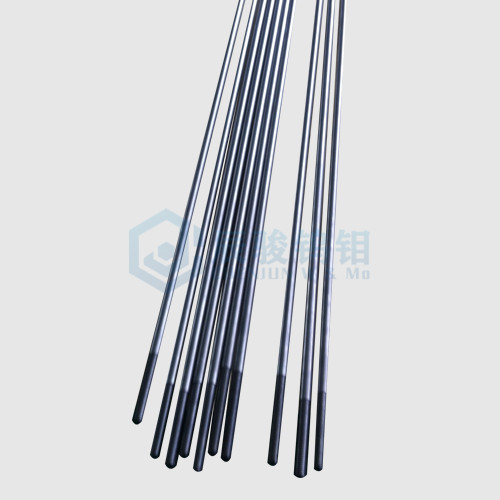

Straightening Mo rod/wire | Φ0.8～Φ3mm | Black, Alkali washing, Ground |
Mo bar | Φ3～Φ25mm | Black, Alkali washing, Ground |

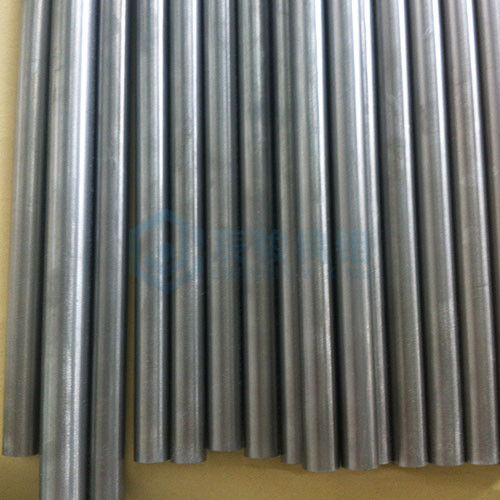

Mo rod | Φ25～Φ100mm | Ground, Lathe processing |

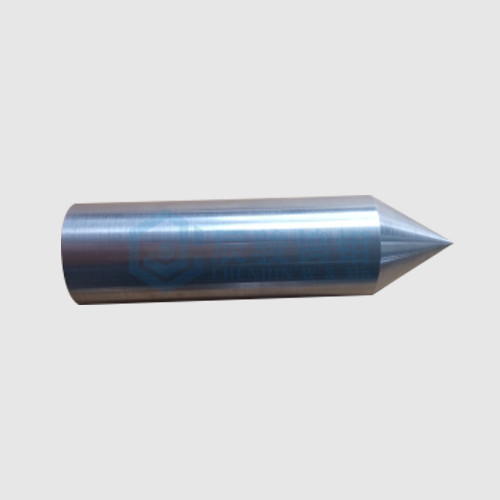

Forged Mo block/disc | Weight for each one ≤100Kg | Ground, Lathe processing |
Custom sizes available upon request. Your special requests are available.
Application scope of Mo bar/rod/block/disk:
-- Used as Mo electrode,Mo agitator and Mo flow outlet in quartz glass smelting and rare earth smelting industries
-- Used as high temperature heater and parts
-- Used for producing ion implantation parts
-- Used as welding electrodes
-- Used as electric vacuum parts
Process flow:
Powder--Pressing--Sinterin--Forging / Swaging--Polishing / Turning--Finished
products-- Inspection-- Packing

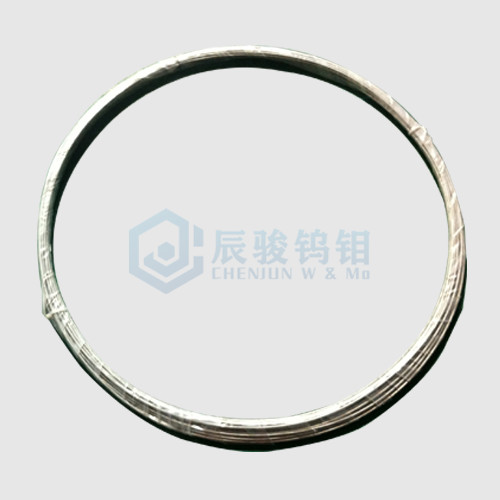

Mo wire’s application and features:
Mo wire can be divided into spraying Mo wire, electric light source Mo wire, wire cut Mo wire and heating furnace Mo wire.
Mo wire for wire cutting is used for cutting various non-ferrous metals, steel and magnetic materials.It has the characteristics of high strength, good discharge performance, high surface finish, fast cutting speed and long life.
The surface of spraying Mo wire is covered with graphite. After removing the graphite, it has a metallic luster. It can be used for fine spraying on the surface of automobile wear parts and mechanical wear surfaces to enhance the wear resistance.Compared with other Mo wire, the common sizes are D3.17mm, D2.3mm and D1.59mm.
The electric light source Mo wire is mainly used as filament support and tungsten spiral core wire.It is characterized by uniform diameter, good straightness, high strength, stable performance at high temperature, and certain flexibility.
The heating furnace Mo wire is mainly used as the heating element of industrial electric furnace, its diameter specification is thicker than that of electric light source Mo wire, and its high-temperature performance is an important quality index.
In addition to pure molybdenum products,Chenjun Tungsten & Molybdenum can also supply MoLa, TZM,WMo alloy products. All products are produced in accordance with customer requirements.
Mo rods with diameter of 4～20mm and Mo wire with diameter of 0.3～2.0mm are conventional size, usually in stock, welcome to consult at any time.
